Mother board - System 80

Mother Board basic for the Gateway and two LDMs. This board provides System 80 with the possibility to have one gateway module (CAN-bus (CGM 85.1), Profit-Bus (PGM 86.1) or Ethernet (EGM 87.1)), as well as two weighing process controllers (LDMs).
It is possible to connect further extension boards and more LDMs, which makes the System 80 scalable and cost efficient.

:: Open

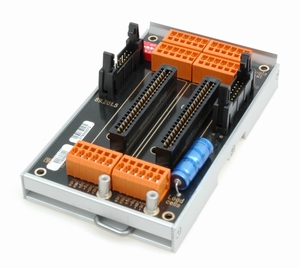

UA 77.1

Unit adaptor

Unit Adaptor for DIN-rail mounting. Header mount of LDU. 2*10 poles screw terminals. Four wire RS422/ 485 to RS232. Board: 41x99 mm.

:: Open

MB 89.4

Extension board for 8 channels - System 80

Mother Board extension for eight LDMs.
It is possible to connect further extension boards and more LDMs, which makes the System 80 scalable and cost efficient..

:: Open

MB 89.3

Extension board for 4 channels - System 80

Mother Board extension for four LDMs.
It is possible to connect further extension boards and more LDMs, which makes the System 80 scalable and cost efficient.

:: Open

MB 89.2

Extension board for 2 channels - System 80

Mother Board extension for two LDMs.
It is possible to connect further extension boards and more LDMs, which makes the System 80 scalable and cost efficient.

:: Open

UA 73.205

Unit adapter

Unit Adaptor for DIN-rail mounting. Header mount of LAU73. Trim pots for Zero and Span. 500ohm output load resistor for voltage output. TS35mm DIN-rail mount and 2*10 pole screw terminals. Board: 41x99 mm.

:: Open

UA 73.204

Unit adapter

Unit Adaptor for DIN-rail mounting. Header mount of LAU73. 500ohm output load resistor for voltage output. TS35mm DIN-rail mount and 2*10 pole screw terminals. Board: 41x99 mm.

:: Open

UA 73.203

Unit adapter

Unit Adaptor for DIN-rail mounting. Header mount of LAU. Trim pots for Zero and Span.TS35mm DIN-rail mount and 2*10 pole screw terminals. Board 41x99mm.
